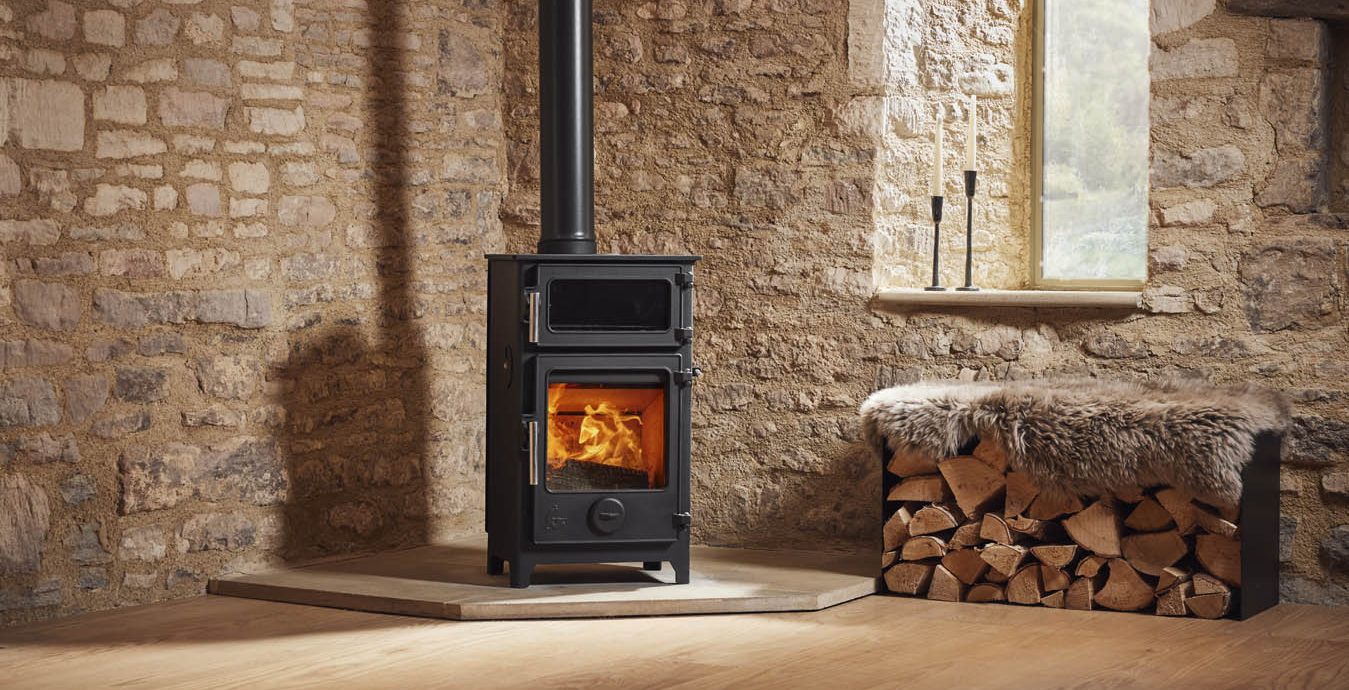

Deans Dartmoor Baker 5 Eco

Dartmoor  Baker 5 Eco – Key Features

  • Only 130mm distance to combustibles to the rear when fitted with a double heat shield and twin wall flue
  • Supplied as a wood burner or a multi-fuel and option to convert at any time back to a multi-fuel or wood burner if required.
  • Powerful preheated airwash system
  • Independent primary & secondary air controls
  • Top and rear flue outlets.  Tertiary air.
  • Can be fitted onto a non-constructional hearth.
  • DEFRA exempt (approved for  smoke control areas)
  • Eco Design
  • Oven vents allow the cooking smells and condensation to be drawn out of the oven and up the chimney
  • Rear flue outlet creates a clear area, providing extra space to access the hotter part of the top plate.  Note a special Dartmoor Baker rear flue adaptor with flue cleaning access can be purchased to achieve this.
  • A removable cleaning plate is located inside the oven.  This provides cleaning access to the top of the oven or for sweeping the chimney when fitted with a top exit flue.
  • All Dartmoor Bakers can be manufactured with an extended stove top.
  • Extended Top available – Top width +120mm
  • Max log length 280mm

Baker 5 Eco – Key Facts



Nominal Output 5kw
Efficiency 82.1%
Flue Size 125mm (5″)
Standard Leg Length 50mm (2″)
Flue Centre Top 133mm
Flue Centre Rear 618mm
Eco 2022 (Ecodesign Ready)
Energy Efficiency Rating A+
