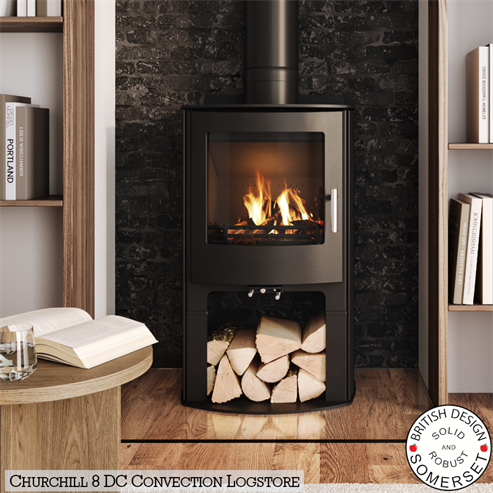

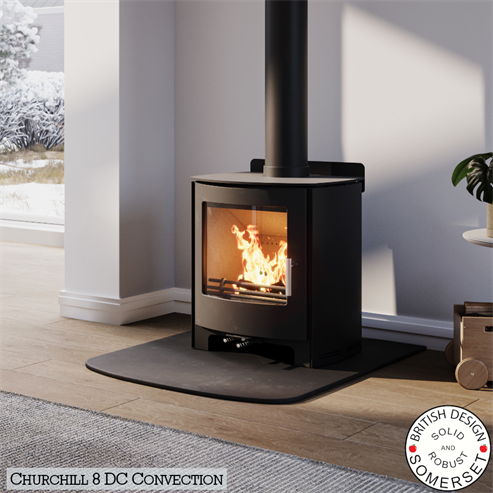

Mendip Churchill 8 DC convection/ Logstore

Woodburner 7KW.

The Churchill 8 convection DC wood stoves are a impressive stove, they have a gently curved cast iron front door and rounded convector side panels. The insulated combustion chamber produces efficient clean efficient combustion exceeding current regulations.

The Churchill 8 convector is perfect for open-plan rooms and or timber-framed buildings as they dissipate the heat more effectively through a group of heat-absorbing panels so less heat will pass directly to the walls and more into the room.

Products specifications

Height 613mm
Width 547mm
Depth 468mm
Weight 130kg
Flue outlet size 150 mm
Energy Rating A
Nominal Output 7.0kW
Ecodesign Ready YES
Efficiency W76.3%
CO @ 13% 0.10
Particulates mg/mo3 @13% 16
Maximum log length 350mm
Distance combustible materials rear 75mm
Distance combustible materials side 210mm
Distance to centre of top flue outlet from back of stove 142mm
Height to centre of rear outlet 513mm
Smoke Control Yes – Order Specific Model
Optional closed combustion Yes
Closed Combustion Outlet Size 80mm ø
Suitable for glass floor plate YES
